Manufacturing facilities constantly seek ways to minimize setup time and maximize productive hours. One technology that has proven particularly effective is magnetic clamping systems, which use powerful magnetic forces to secure tooling, molds, and workpieces quickly and reliably. These systems eliminate many of the time-consuming steps associated with traditional mechanical clamping methods.
Understanding how magnetic clamping systems work and their impact on setup time can help production supervisors make informed decisions about implementing this technology in their facilities. The potential time savings and operational benefits make magnetic clamping an attractive option for manufacturers focused on lean production principles.
What Are Magnetic Clamping Systems, and How Do They Work?

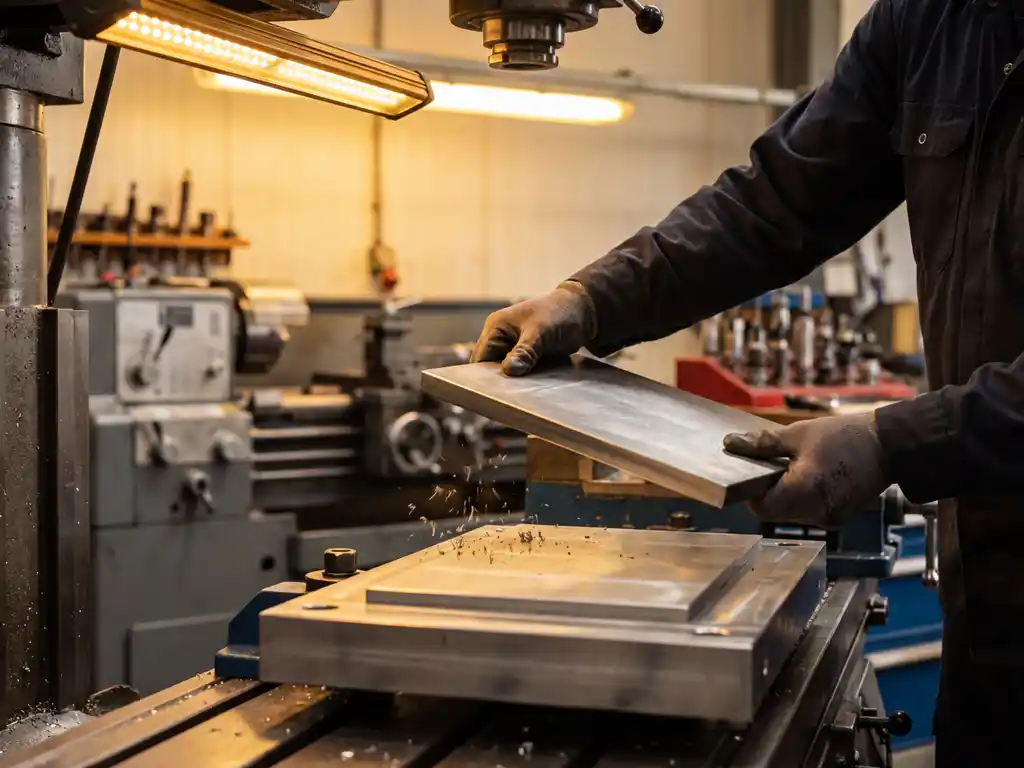

Magnetic clamping systems are advanced workholding solutions that use electromagnetic or permanent magnetic forces to secure molds, dies, and workpieces during manufacturing operations. These systems generate powerful magnetic fields that create strong, uniform clamping forces across the entire contact surface without requiring mechanical fasteners or complex setup procedures.
The technology operates through either electromagnetic coils that can be switched on and off or permanent-magnet systems that use control mechanisms to redirect magnetic flux. When activated, the magnetic field creates an immediate, secure hold on ferromagnetic materials. The clamping force is distributed evenly across the workpiece surface, providing consistent pressure that eliminates the need for multiple individual clamps or fastening points.
Modern magnetic clamping systems often incorporate safety features such as residual magnetism indicators and fail-safe mechanisms. These ensure that workpieces remain securely held even during power interruptions while also providing clear visual confirmation of clamping status to operators.
Why Do Magnetic Clamps Reduce Setup Time Compared to Traditional Methods?
Magnetic clamps reduce setup time by eliminating the need for manual fastening and unfastening of multiple mechanical clamps, bolts, or other securing devices. Traditional clamping methods require operators to position, tighten, and adjust numerous individual components, while magnetic systems achieve full clamping with the simple activation of a switch or control system.
The time savings come from several key factors. First, magnetic systems provide instant engagement across the entire workpiece surface simultaneously, rather than requiring sequential tightening at multiple points. Second, no tools are required for operation, eliminating the time spent locating, using, and storing wrenches, keys, or other fastening tools.
Additionally, magnetic clamping systems maintain consistent clamping force without the need for torque specifications or manual adjustment. Operators don’t need to check and recheck fastener tightness or worry about uneven clamping pressure that could affect part quality. The uniformity of magnetic force also reduces the likelihood of workpiece distortion or damage during setup.
How Much Setup Time Can Magnetic Clamping Systems Save?
Magnetic clamping systems typically reduce setup time by 70–90% compared to traditional mechanical clamping methods. While conventional setups might require 15–30 minutes for complex tooling changes, magnetic systems can achieve the same secure clamping in 2–5 minutes, depending on application complexity and operator experience.
The exact time savings depend on several factors, including the number of clamping points required, the complexity of the workpiece geometry, and the skill level of operators. Simple applications with straightforward workpiece shapes may see even greater percentage improvements, while complex multi-axis setups will still achieve significant reductions in changeover time.
These time savings translate directly into increased productivity and reduced labor costs. For facilities running multiple setup changes per shift, the cumulative effect can result in several additional productive hours per day. The consistency of magnetic clamping also reduces variability in setup times, making production scheduling more predictable and reliable.
What Types of Manufacturing Operations Benefit Most from Magnetic Clamping?
Manufacturing operations that involve frequent tool changes, work with ferromagnetic materials, and require precise workpiece positioning benefit most from magnetic clamping systems. Metal stamping, injection molding, machining centers, and die-casting operations are particularly well suited to this technology due to their combination of setup frequency and material compatibility.
High-mix, low-volume production environments see the greatest impact from magnetic clamping implementation. These facilities typically perform multiple changeovers per shift and need to maintain flexibility while minimizing nonproductive time. The quick engagement and release capabilities of magnetic systems align perfectly with lean manufacturing principles and just-in-time production requirements.
Operations focused on SMED (Single-Minute Exchange of Dies) programs also find magnetic clamping essential for achieving their setup time reduction goals. The technology supports the SMED methodology by converting internal setup activities to external ones and simplifying the remaining internal steps to basic switch operations.
How Do You Implement Magnetic Clamping for SMED Programs?
Implementing magnetic clamping for SMED programs begins with analyzing current setup procedures to identify time-consuming clamping operations that can be converted to magnetic systems. The implementation should focus on the most frequent changeovers first to maximize the immediate impact on overall equipment effectiveness.
The process starts with mapping existing setup steps and timing each activity to establish baseline measurements. Next, evaluate which clamping operations involve ferromagnetic materials and have sufficient flat surface contact for effective magnetic holding. These become the primary candidates for magnetic clamping conversion.
Training operators on magnetic system operation is crucial for successful implementation. While the technology simplifies the clamping process, operators need to understand proper positioning techniques, safety procedures, and system monitoring requirements. Regular practice sessions help build confidence and ensure consistent execution during actual production changeovers.
How EAS Change Systems Helps with Magnetic Clamping Implementation
We specialize in developing comprehensive quick die change solutions that incorporate advanced magnetic clamping technology to minimize setup times in metal stamping operations. Our SMED-focused approach combines magnetic clamping systems with complementary technologies to achieve dramatic reductions in changeover time.
Our magnetic clamping solutions include:
- Custom-engineered magnetic plates and clamping systems designed for specific die configurations
- Integrated safety systems with visual indicators and fail-safe mechanisms
- Complete system installation and operator training programs
- ROI calculations and performance monitoring to validate time savings
- Ongoing service and maintenance support to ensure optimal system performance
Ready to reduce your setup times and increase productivity with proven magnetic clamping technology? Contact us today to discuss how our quick die change solutions can transform your manufacturing operations and deliver measurable results for your facility.
